CF12JT10K0
Manufacturer:
Stackpole Electronics
Mfr.Part #:
CF12JT10K0
Datasheet:
Description:

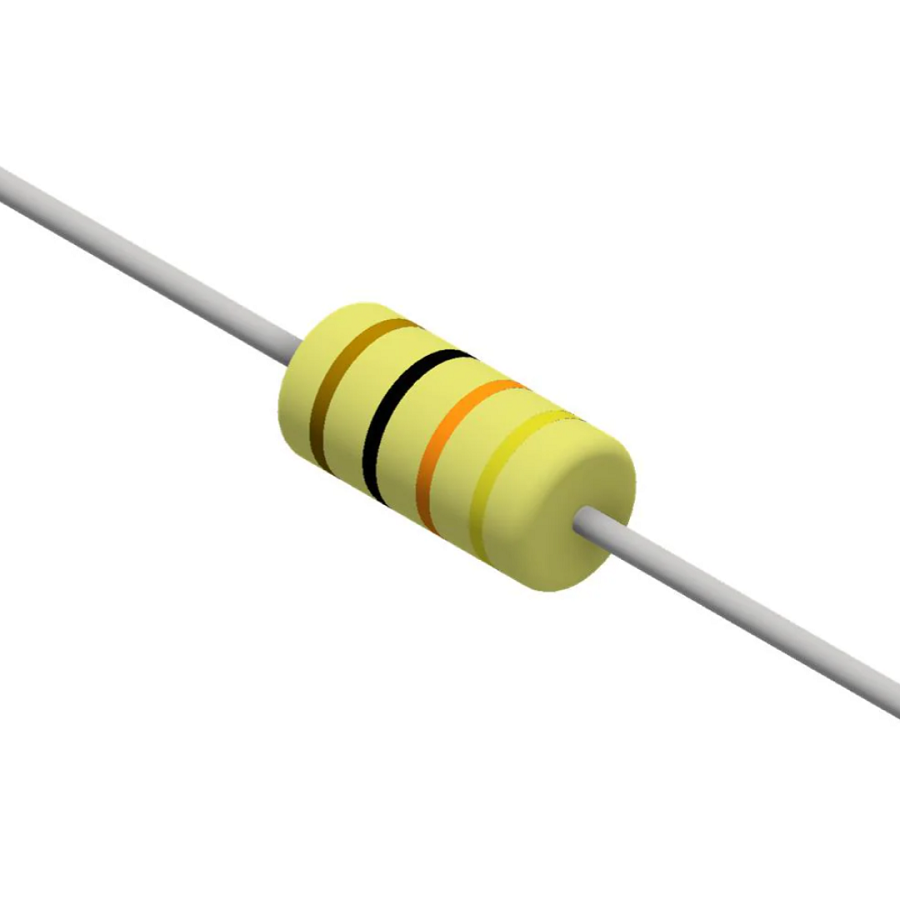

Through-Hole Resistors Through Hole 10 kΩ 5 % 500 mW Carbon Film
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 8.5 mm |
| Termination | Axial |
| Diameter | 2.7 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 10 kΩ |
| Power Rating | 500 mW |
| Composition(Kit Type) | Carbon Film |
| Temperature Coefficient | -500 ppm/°C |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Features | Flame Retardant Coating |
| Military Standard | Not |
| Max Power Dissipation | 500 mW |
| Number of Terminations | 2 |
| Schedule B | 8533100070 |
Stock: 120279
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.01752 | $0.17520 |
| 50 | $0.01479 | $0.73950 |
| 100 | $0.01248 | $1.24800 |
| 500 | $0.01000 | $5.00000 |
| 1000 | $0.00855 | $8.55000 |
| 3000 | $0.00731 | $21.93000 |
| 5000 | $0.00624 | $31.20000 |
| 10000 | $0.00565 | $56.50000 |
